ABOUT US
VIOS factory located in beautiful city:Leqing,Wenzhou,Zhejiang province.Our overseas sales team has show room&office in Shanghai.
Beginning with complicated eyelet button hole machine,we accumulated rich experiences,then we focus on heavy duy sewing machines,after over 10years,we have full series products for flat bed 867(including 335mm,400mm,460mm working clearance width),high post 868 and cylinder bed 669 machine,our machines are widely used on automative,home uphostery,bag,tent,golf bag,etc.,
VIOS,produced all components including spare parts& control box,we focus on R&D,production seriously.
PRODUCT

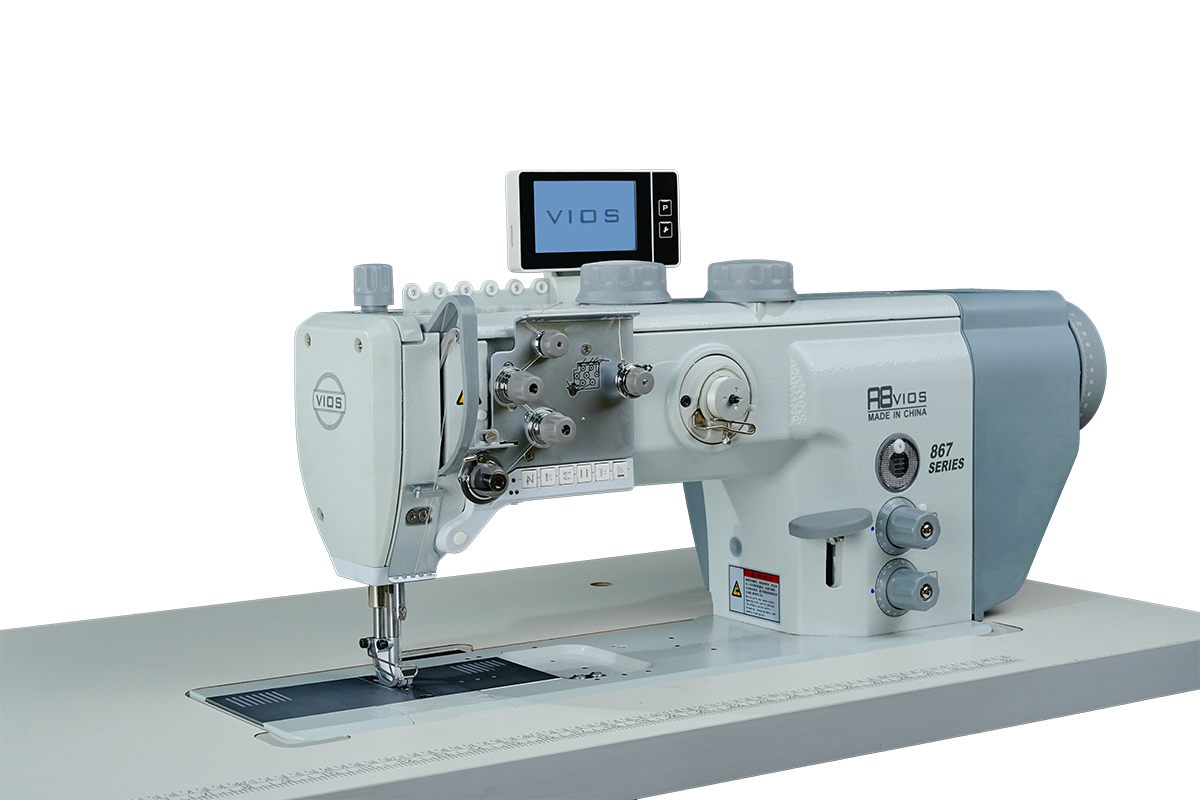

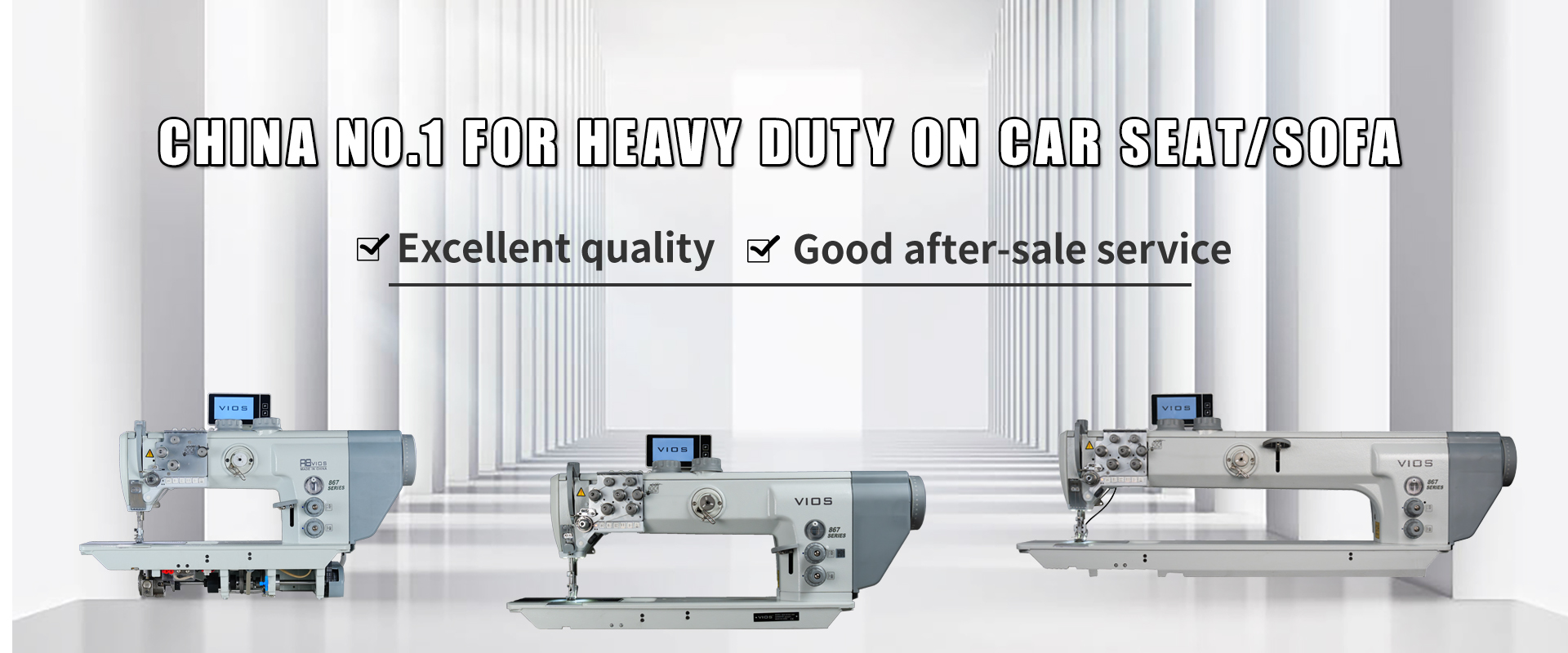

867 flat bed 335mm long arm
867 Flat Bed Compound Feed Lockstitch Sewing Machine
- Stitch length 9mm(Optional 12mm);
- Thickest thread Nm10/3 (Thread Nm5/3 for 12mm stitch length);
- Max sewing speed 3000RPM (1500RPM for 12mm stitch length);
- High top feed stroke up to 9mm;
- Full fucntion,including automatic trimmer,auto backtacking,PFL,HP function,Knee presser foot lifter device;
- 26XL and 32mm XXL hook for extra 70% bobbin capacity;
- Needle: DPx35 #14-#24
- LED lighting, Self-developed stable VIOS control system;
- Air pressure:4.0NL.6Bar;
- Needle gauge for double needle(3mm-70mm,and normal 4mm,6mm,8mm,10mm,12mm in stock);
- C with edge cutter,cutting size:1.2-2.5MM;
- Pneumatic presser foot lifter Max.20mm;
- Large clearance 335*120mm;
- Widely used on all field of medium-heavy duty applications;
- Specify when ordering

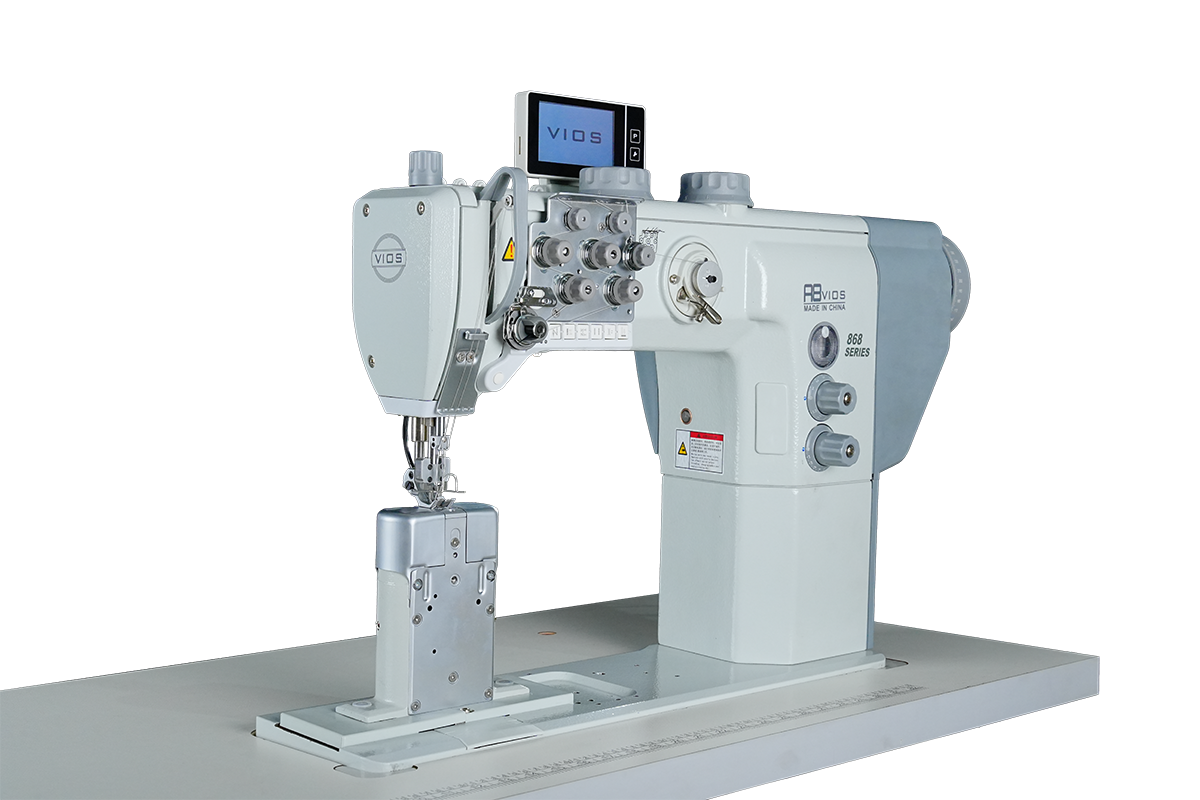

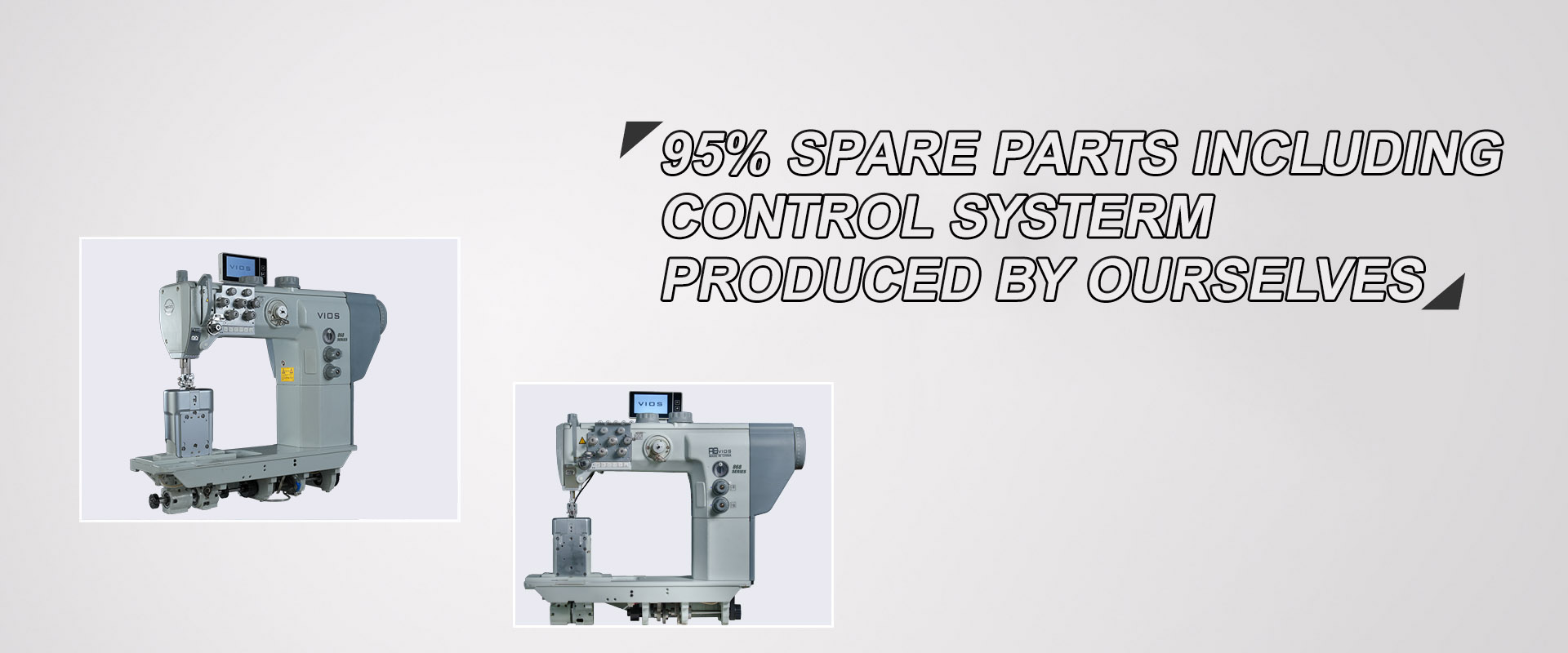

868 Series High Post
868 High Post Bed Compound Feed Lockstich Sewing Machine
- Widely used in the field of car and home upholstery;
- Full function, including automatic trimmer, auto backtacking and pneumatic presser foot lifter, HP function, Knee presser foot lifter device(depends models);
- Single needle, L- left hook, R- right hook;
- Needle DPx35 #18-#25;
- LED lighting, self-developed VIOS control system;
- Needle gauge for double needle(4mm,6mm,8mm,10mm,12mm)
- Specify needle gauge when ordering
- presser foot lifter 20mm;
- sewing speed 2500RPM;
- High top feed stroke up to 9mm;
- Wide clearance:335*295mm
- Specify when ordering

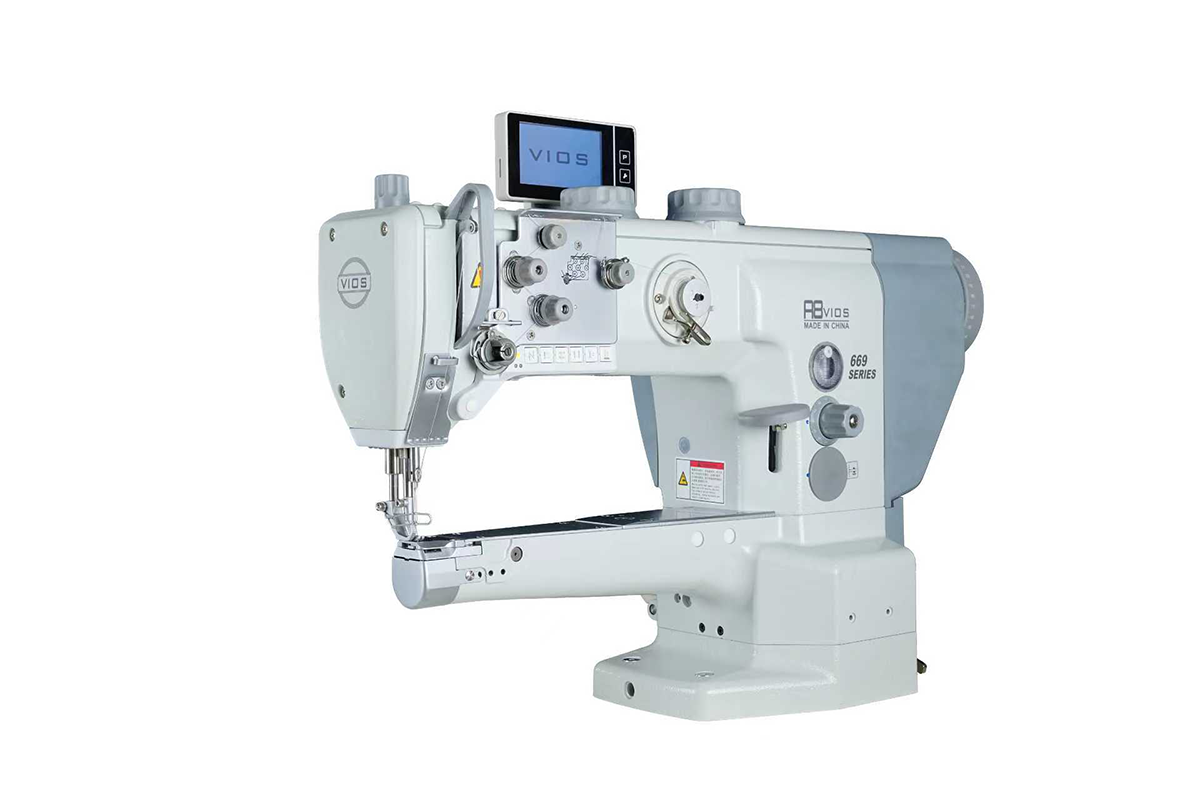

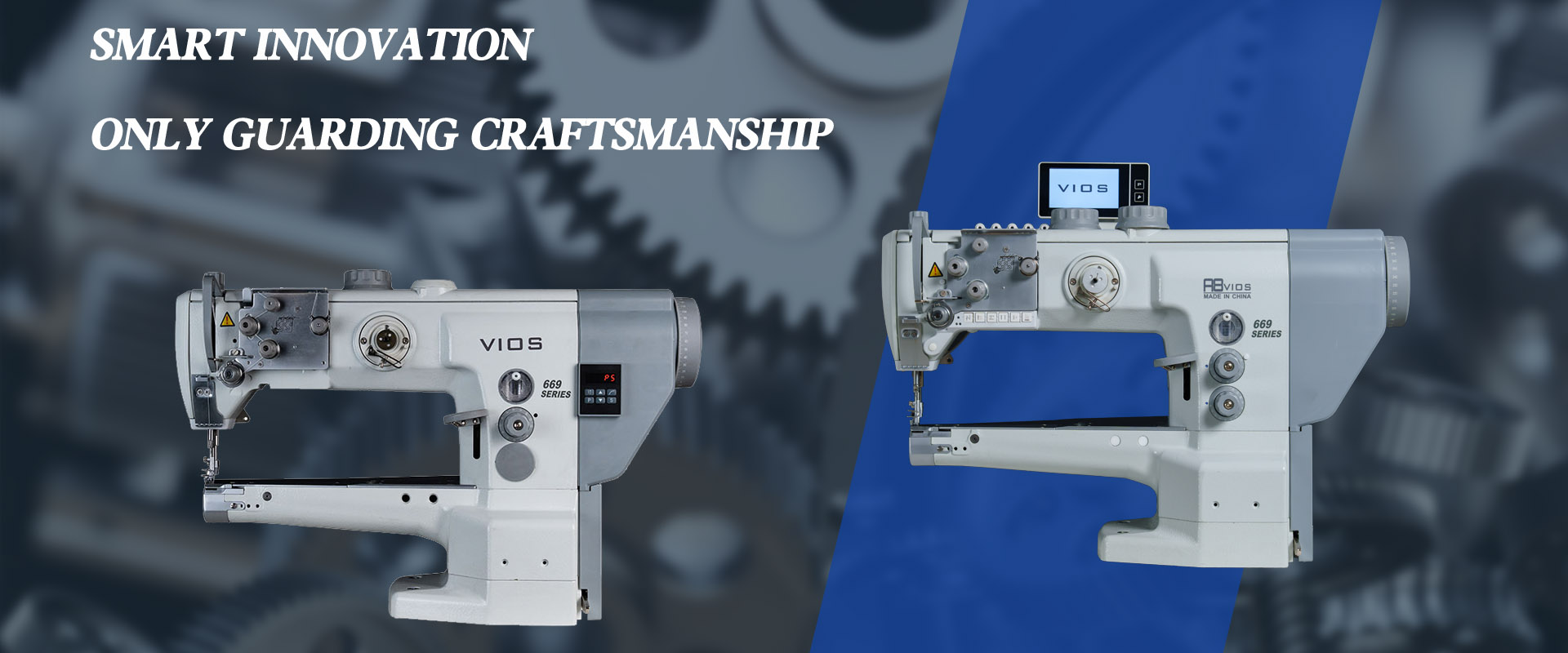

669 Series Cylinder Bed
669 Single Needle Cylinder Bed Compound Feed Lockstitch Sewing Machine
- Trimmer type 669A with display inside arm bed,trimmer type 669B with display on top of arm bed;
- Stitch length 9mm;
- Pneumatic press foot lifter Max.20mm;
- Max sewing speed 3000RPM;
- High top feed stroke up to 9mm;
- Assembly and binding operations as well as decorative stitches in small;
- leather goods;
- Z-integrated powerful direct drive;
- LED lighting, Self-developed stable VIOS control system;
- Synchronized binding device,guider device optional;
- Full function, including automatic trimmer, auto backtacking, PFL;
- Large clearance 335*125mm.

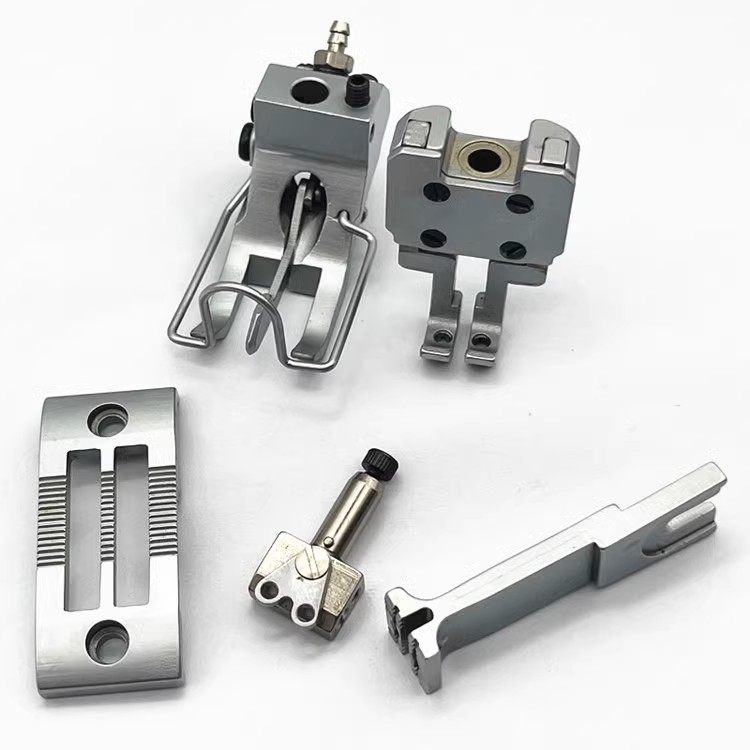

868 double needles pneumatic type needle gauge
normal size:6mm,8mm,10mm,12mm,14mm,16mm
if special,please give details when place PO
